QNP
Communication rooms Dec 2001
PABX Room

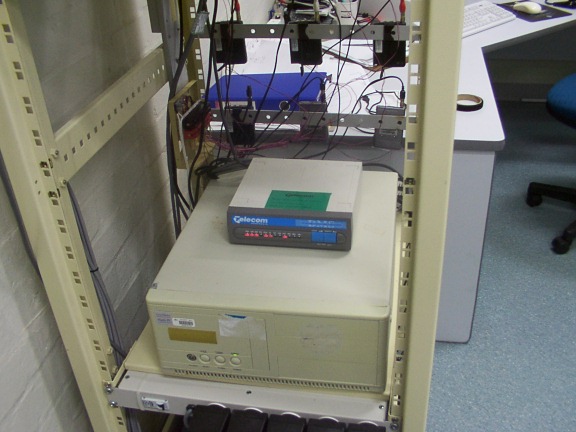

Installed in a cabinet in the PABX room is the AAP Newstream PC and Telstra modem. The NXX wire is feed to the computer room on the first floor. The wire is then split into a number of Cyber servers.

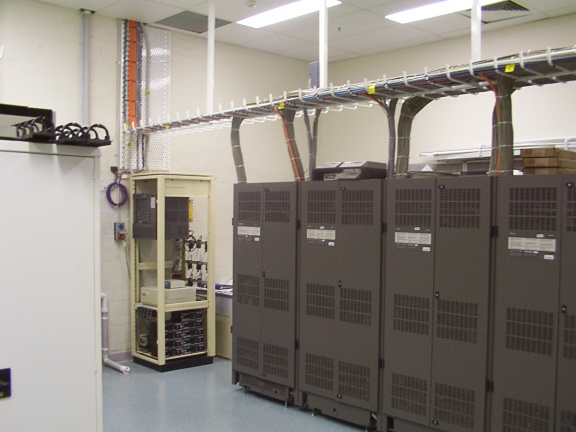

PABX racks and the cabinet that the newstream PC sits in.

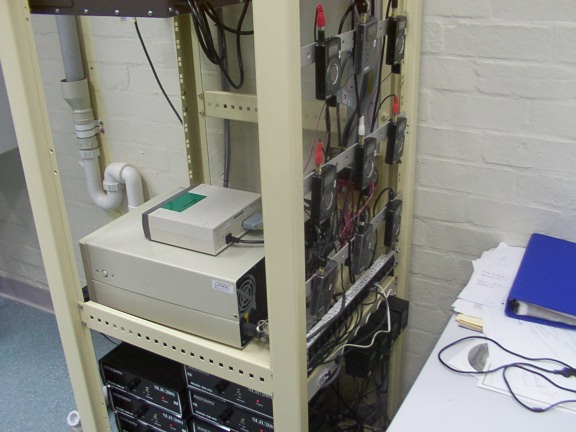

Side of the rack, you will notice the way QNP has used the Mpeg3 players for music on hold.
Front of the rack

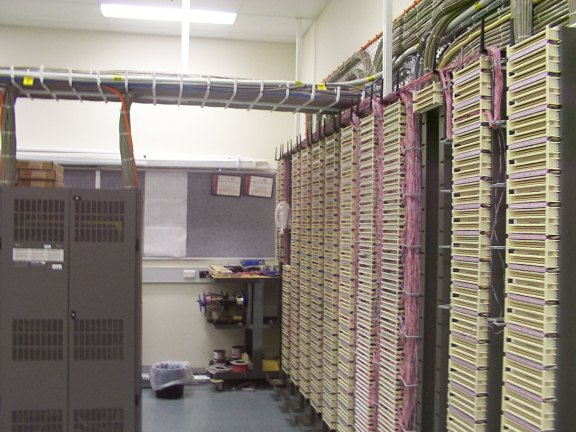

AT&T Frame used to distribute telephone services to the building.
Computer room 1st floor

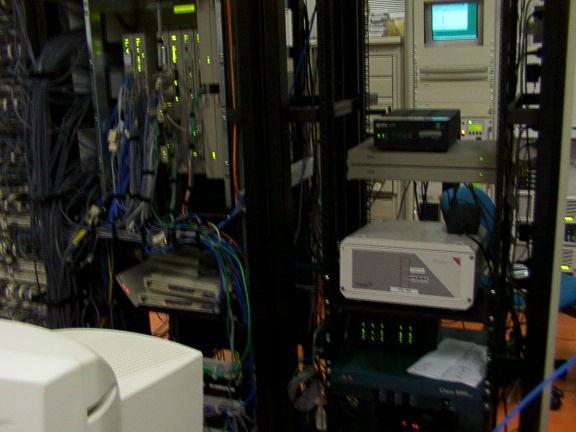

Cabinets holding the Cyber interfaces and the AAPT Nokia equipment. Located at the back is a splitter used with BRB.

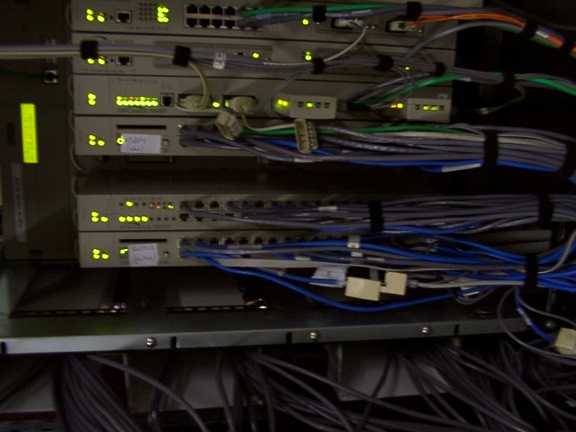

Cyber interface (NXX, BRB and Stockset and formguide)
QNP staff
Fred works as a subcontractor at QNP, maintaining the structured cabling.
David Haringcaspel Senior support Analyst.
