Riverside
L27 Communication Room
AAP Groups communications room
UPS used to carry the load with the loss of power until the building generators start.

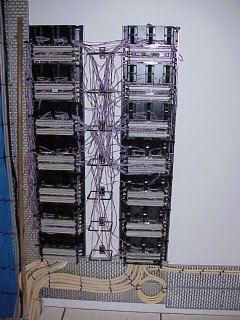

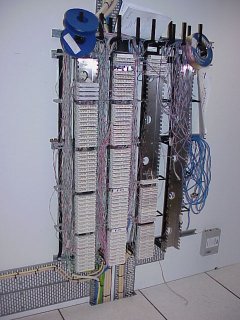

AT & T frame used by all the interface devices while the Krone is used by PSTN and data modems in the communication room. All the racks have RJ45 patch connections in them.

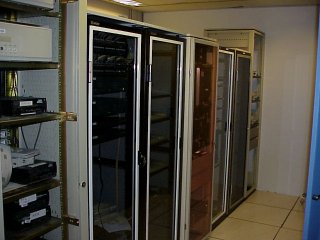

This is the back row of cabinets and house the Newstsream digital splitters, AAP ADS equipment, the GDC and DM2 switch as well as the old AMQ routers.

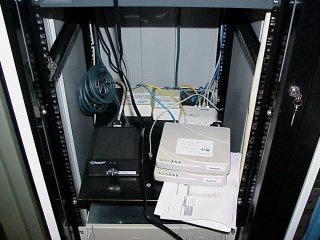

Flowpoint ASDL bridges for Editorial

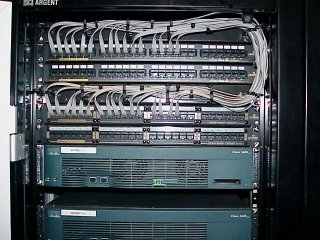

Routers and patch cabling for the line interfaces for Cisco 2500 routers.
Telstra modem as used for Newstream clients.

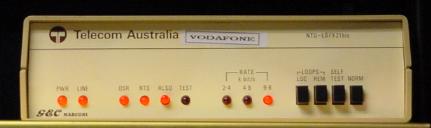

Telecom 4 wire modem being used by Vodafone

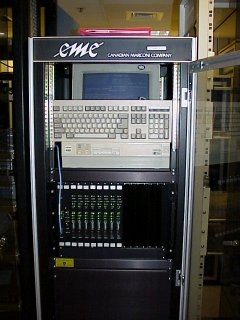

Fax switch used by AAP Medianet.
Past equipment
ISDN line used first in the communication room by AAPCS for the video conference system

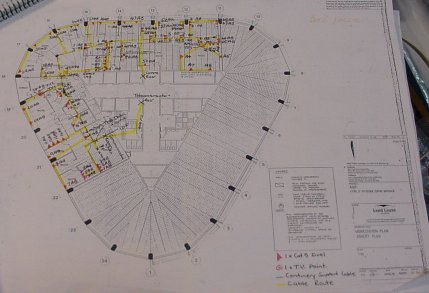

Layout of all the structed cabling on the 27th floor

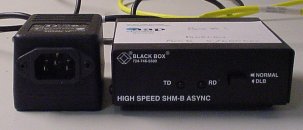

Line drivers were used for the AMQ service. The service ran between the concentrators on the 27th floor to the stockbrokers Morgan, Burrells and Bell-Paul Morgan. The unit enabled AAPIS the opportunity to supply the service without purchasing Telstra modems. The service ran at a speed of 64k bps.
Used in house for the LAN network. These unit had the facility for 10BaseT and 10Base2 cabling.

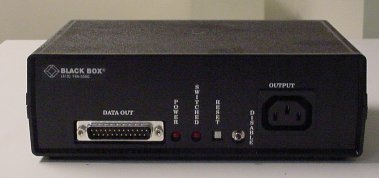

ADS used these boxes with dialup modems to be able to reset the MAC PC remotely.
Used with Newstream services.

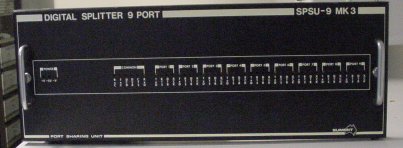

Facility to support 9 output at once.

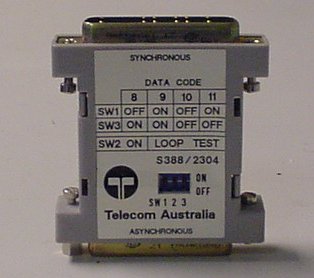

Telstra use this device to change sync modems to async modem.

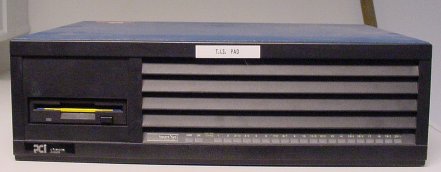

TIS pad is a X25 device and was used for the distribution of the Thoroughbred Horse Information system. PC terminals using DANTE software would hang off the box.
Winframe servers have been removed and the inhouse system are located in the last cabinet.
